current/voltage tester

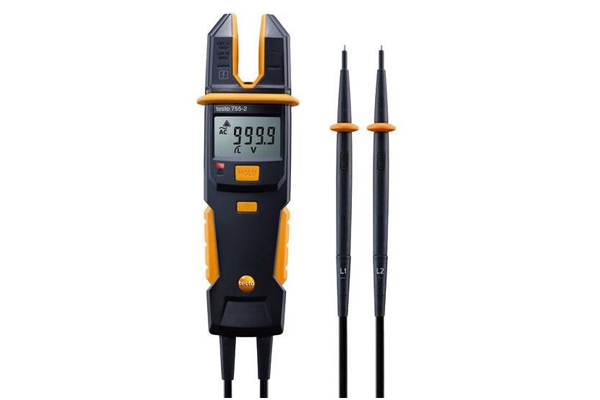

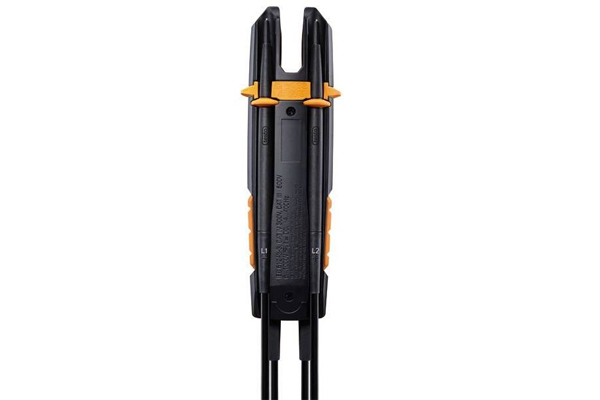

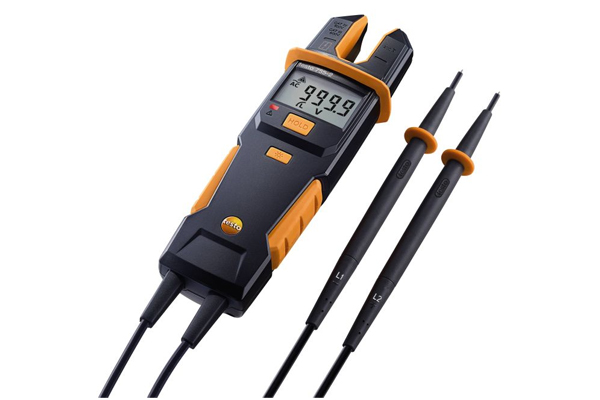

Testo 755-2

Testo 755-2

Rs. 21,710.00

GST and accessories extra

Simple, reliable operation with automatic selection of measurement parameters DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified Single pole voltage testing to determine quickly whether conductors are live Voltage range up to 1,000 V< All-in-one voltage tester and current measuring instrument: the innovative testo 755-2. A multitasker for almost all daily electrical measuring tasks. With automatic measurement parameter detection, exchangeable measuring tips and an extended voltage range up to 1,000 V.

Product Description

With the testo 755-2, you are equipped for the most important tasks of the working day. The current/voltage tester is suitable for determining voltage or de-energization, checks voltage level and continuity and measures flow of current along with current consumption. It is a simple task to change faulty measuring tips – without needing to replace the instrument. And the automatic measurement parameter detection and integrated torch make operation and measurement particularly easy and reliable.

Compared to the testo 755-1, the testo 755-2 has an increased voltage range of up to 1,000 V and enables rotating magnetic field measurement along with single pole voltage testing to determine quickly whether conductors are live.

Delivery Scope

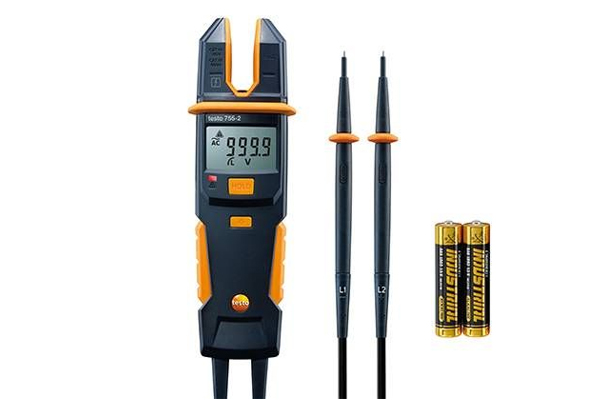

testo 755-2 current/voltage tester, including batteries, measuring tips, measuring tip caps, calibration protocol and instruction manual.

DC voltage
Measuring range	6 to 1000 V
Resolution	max. 0.1 V
Accuracy	± (1.5 % of mv + 3 Digit)

AC voltage
Measuring range	6 to 1000 V
Resolution	max. 0.1 V
Accuracy	± (1.5 % of mv + 3 Digit)

AC current
Measuring range	0.1 to 200 A
Resolution	max. 0.1 A
Accuracy	± (3 % of mv + 3 Digit)

Resistance
Resolution	max. 1 Ohm
Measuring range	30 to 100 kOhm
Accuracy	± (1.0 % of mv + 5 Digit)

General technical data
Operating humidity	0 to 75 %RH
Storage temperature	-15 to +60 °C
Weight	320 g
Dimensions	199 x 62 x 40 mm
Operating temperature	-10 to +50 °C
Product colour	Black
Protection class	IP64
Standards	EN 61243-3; EN 61010-1
Battery type	2 AAA micro batteries
Display type	LCD
Display size	one-line
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE

Instrument Measurement Functions
Continuity testing	yes
Display ligthing	yes
Hold	yes
Rotating magnetic field testing	yes
Single pole phase testing	yes
Measuring point illumination	yes
Display (counts)	4,000
Autom. measurement parameter detection	yes

Product Brochure

Data sheet testo 755 (application/pdf, 404 KB)	Download
Instruction manual testo 755 (application/pdf, 192 KB)	Download
